Receive the same high quality cable assemblies that you've come to expect from LEMO push-pull connectors.
Electrical Configuration
- Contact Termination Low voltage
- PCB - Straight
- R (max)
- 8.7 mOhm
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Rated current
- 3 Amps
- Contact Type
- Print (straight)
- Contact Dia.
- 0.5 mm (0.02in)
- Low Voltage
- 3
- Gender
- Standard
Form & Material
- Shell style / Model id
- ECN - Fixed receptacle with 2 nuts key (N) or key (S), protruding shell (back panel mounting)
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Housing material
- Aluminium (nickel plated [SAE AMS QQ N 290], anthracite color) shell and nut, other pieces bronze/brass
- Locking system
- Push-pull
- Keying
- 3 keys (alpha=42, gamma=30, plug: male contacts, receptacle: female contacts)
- Weight
- 1.98 g
Environment
- Technical domain
- Motorsport, Security and Defence
- Environmental protection (IP rating)
- IP50
- Minimal temperature
- -15°C / +200°C
- Climatical Category
- 15/200/21 (Aluminium shell)
- Humidity (max)
- <=95% [at 60 deg C /140 F]
- Shock Resistance
- 100 g [ 6 ms]
- Vibration
- 15 g [10 Hz - 2000 Hz]
- Salt Spray Corrosion
- max. 48 hr

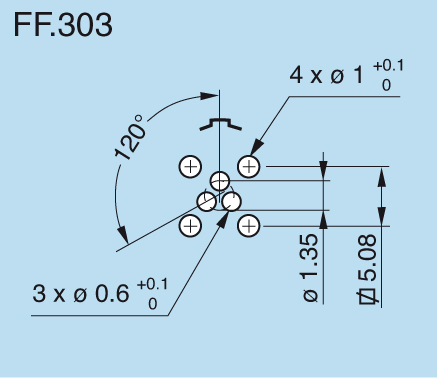

Technical plans
Dimensions
| A | B | e | E | M | N | S3 | |
|---|---|---|---|---|---|---|---|
| mm. | 10 | 10.2 | M7x0.5 | 1.5 | 2.5 | 13.9 | 9 |
| in. | 0.39 | 0.4 | 0.06 | 0.1 | 0.55 | 0.35 |
CAD
F series - Motorsport/Defense
Solutions Selection Guide
F - Rugged Push-Pull
Main Features
- Harsh environments (IP67)
- Push-Pull latching system
- Strong resistance to shocks and vibrations
- Multi-Keying system with color coding
- Light & compact construction
- Stealth Anthracite coating
