M Series High power

Designed for the most stringent high power distribution requirements

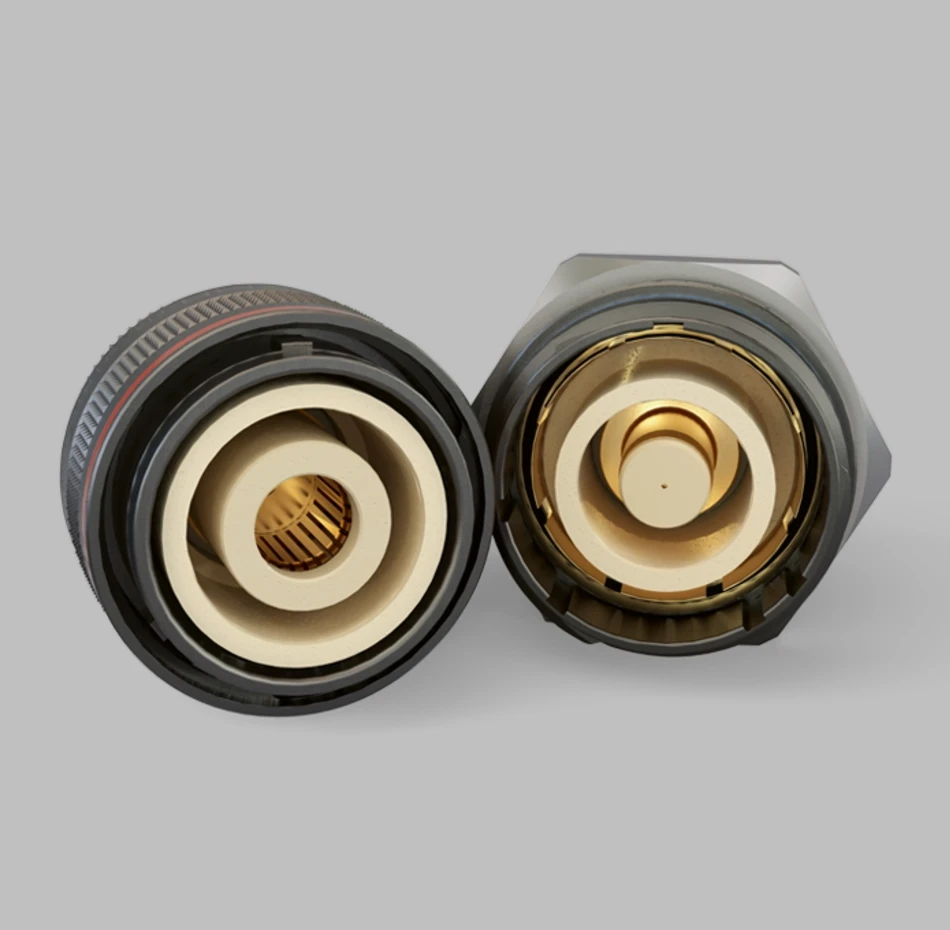

M series high power

Main Features

  • Various sizes & configurations providing maximum rated current ranging from 140A to 430A
  • 360° screening for full EMC shielding
  • Wide temperature range -55°C to 200°C
  • Broad range of lightweight aluminium shell models
  • Compact design for space savings
  • Ratchet-coupling mechanism
  • High shock and vibration resistance
  • Oil and fuel resistant
  • Sealed to IP68 mated; IP68 unmated as options
  • Blind mating / keying / colour coding
  • Reverse gender configuration option
  • Scoop proof & IP2X finger protection
  • Alternative housing material: Brass for 1000 hours salt fog resistance
  • Anthracite Aluminium for low reflections
  • Tested to MIL Standards (MIL-STD-810F)
  • Threaded option for MIL-DTL-38999M backshell

Rapidly improving battery technologies, capacities and cost as well as increasing tendency towards autonomous/driverless vehicles have created a clear trend towards increased power requirements for connectors in the automotive, transportation, defense, aerospace, robotics and motorsport industries.

The new LEMO M series ratchet coupling High Power connectors were developed to satisfy the most stringent connection requirements for High Power distribution of electronic devices and electric drive vehicles - essentially any system with electrical motors, batteries and inverters where high torque may be required for short or longer period.

This new LEMO M series High Power portfolio constitutes one of the most comprehensive, compact, light, rugged, safe and completely waterproof reliable interconnect solution set available on the market for high power requirements.
