00 - NIM-CAMAC

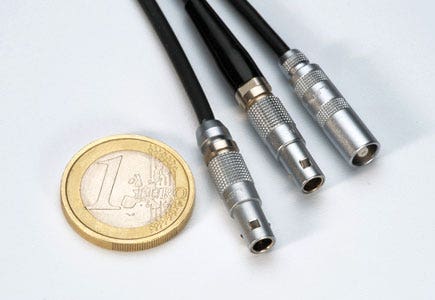

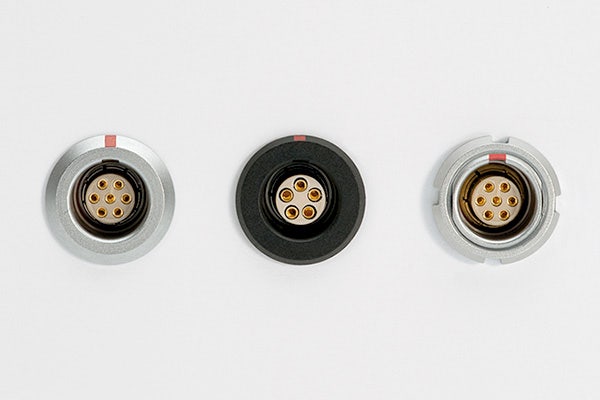

LEMO micro miniature 50 Ohms Coaxial connectors
Main Features
- Miniature circular connector
- Indoor/ protected environments (IP50)
- Push-Pull latching system
- Coaxial contact configurations
Reliable High quality and performance interconnect solutions
Modular and custom made complete solutions
Worldwide presence with local experts, stock management and cable assembly everywhere
Form & Material
- Environment
- Broad metallic & plastic high quality miniature circular connector range for indoor/protected environments (IP50)
- Latching system
- Push-Pull latching system enabling simple/quick yet safe and reliable frequent connect and disconnect
- Construction
- Field proven solid & compact construction
- Ergonomy
- Ergonomic design thanks to knurled pattern
- Size and model
- Various sizes and models including elbow plugs, watertight and vaccumtight models
Electrical configurations
- Contact configuration
- Large selection of coaxial contact configurations
- Screening
- 360° screening for full EMC shielding
Solutions Selection Guide
00 and 01 coaxial series (Nim Camac)
Cable assembly for non destructive testing
SPECIALTIES
Use the table to see the 2 main series within the SPECIALTIES connector family and to identify the connector(s) best adapted to your specific requirements.
| Description | Description The standard for high-definition TV (SMPTE 304). Robust hybrid fiber optic connector guarenteeing certified signal integrity. | Description 00 series: Coaxial 50 Ω self-latching connectors, the basis of the NIM-CAMAC standard. 01 series: Smallest self-latching coaxial 50 Ω connectors. |
| Locking | Locking Push-Pull | Locking Push-Pull |
| Size | Size 1 size ø 19.5 mm (plugs) | Size 2 sizes from ø 5.0 to ø 6.4 mm (plugs) |
| Keying | Keying 1 keyway | Keying No keying (Coax) |
| Shell Types | Shell Types Over 11 shell style | Shell Types Over 40 shell styles |
| Shell Material | Shell Material Stainless steel or Brass | Shell Material Brass |
| Plating | Plating Chrome on brass version | Plating Nickel, Chrome or Gold |
| Cable Diameter | Cable Diameter 8.9 to 9.5 mm | Cable Diameter 1.1 to 5.5 mm |
| NB of contact | NB of contact 2 FO / 2 signal / 2 power & ground | NB of contact Coax 50Ω |
| AWG | AWG 14 to 24 | AWG 26 |
| Contact types | Contact types Multipole • Fibre Optic High Voltage | Contact types Coax 50Ω |
| Contact Termination | Contact Termination Crimp | Contact Termination Solder / Crimp / Print (PCB) |
| Standard | Standard SMPTE 304 & equivalent | Standard |
| Sealing Level | Sealing Level IP68 | Sealing Level IP50 / hermetic sockets |
| Temperature Range | Temperature Range -40°C to 80°C | Temperature Range -55°C to 260°C |
| Mating Cycles | Mating Cycles > 20000 | Mating Cycles 00 > 5000 / 01 > 1000 |
00 - NIM-CAMAC

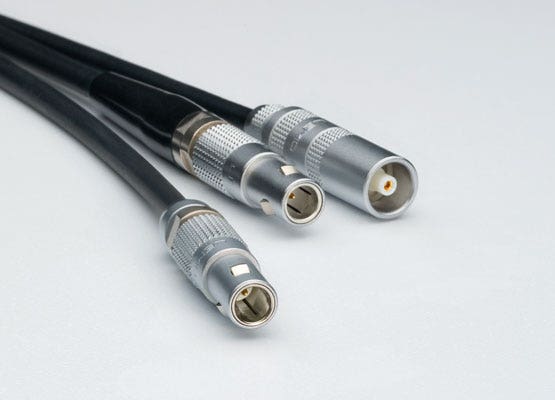

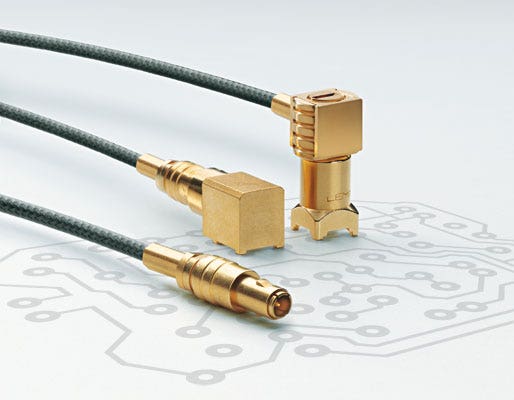

The miniature 00 and 01 series offer an extensive selection of configurations for coaxial contacts which meet the NIM and CAMAC standards. Designed for indoor and protected environments (IP50), the Push-Pull latching system is efficient, reliable and safe. The ergonomic knurled pattern can be found on every size and model (elbow plugs, watertight and vacuum-tight). The 00 and 01 series are suitable for a wide range of applications including test and measurement, use with semi-conductors, in broadcast (audio/video), and the medical, defence and aerospace sectors.
- Plug
- Elbow
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 3.10 - 4.00 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Crimp
- Jacket cable outside diameter [mm]
- 2.30 - 2.70 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 1.10 - 1.40 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 1.80 - 2.20 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 2.80 - 3.10 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 2.80 - 3.10 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 1.80 - 2.20 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 2.80 - 3.10 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 2.80 - 3.10 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 2.80 - 3.10 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 2.30 - 2.70 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 2.80 - 3.10 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 2.80 - 3.10 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 1.10 - 1.40 mm
- Plug
- Straight
- Nb of contacts
- 1
- Termination
- Solder
- Jacket cable outside diameter [mm]
- 1.80 - 2.20 mm
