3K.93C.Y - SMPTE Hybrid
The standard for high-definition TV (SMPTE 304). Robust hybrid fiber optic connector guaranteeing certified signal integrity.
Main Features
- Digital HDTV cameras in outdoor environments (IP68)
- Conforms to ARIB, SMPTE & EBU standards
- Push-Pull latching system
- Robust construction
Reliable High quality and performance interconnect solutions
Modular and custom made complete solutions
Worldwide presence with local experts, stock management and cable assembly everywhere
Form & Material
- Environment
- Stainless steel high quality circular connector range for last generations of digital HDTV cameras in outdoor environments (IP68)
- Latching system
- Push-Pull latching system enabling simple/quick yet safe and reliable frequent connect and disconnect
- Keying system
- Keying W code
- Construction
- Robust construction for very demanding working conditions
- Ergonomy
- Ergonomic design
- Size and model
- Various models
Electrical configurations
- Insert configuration

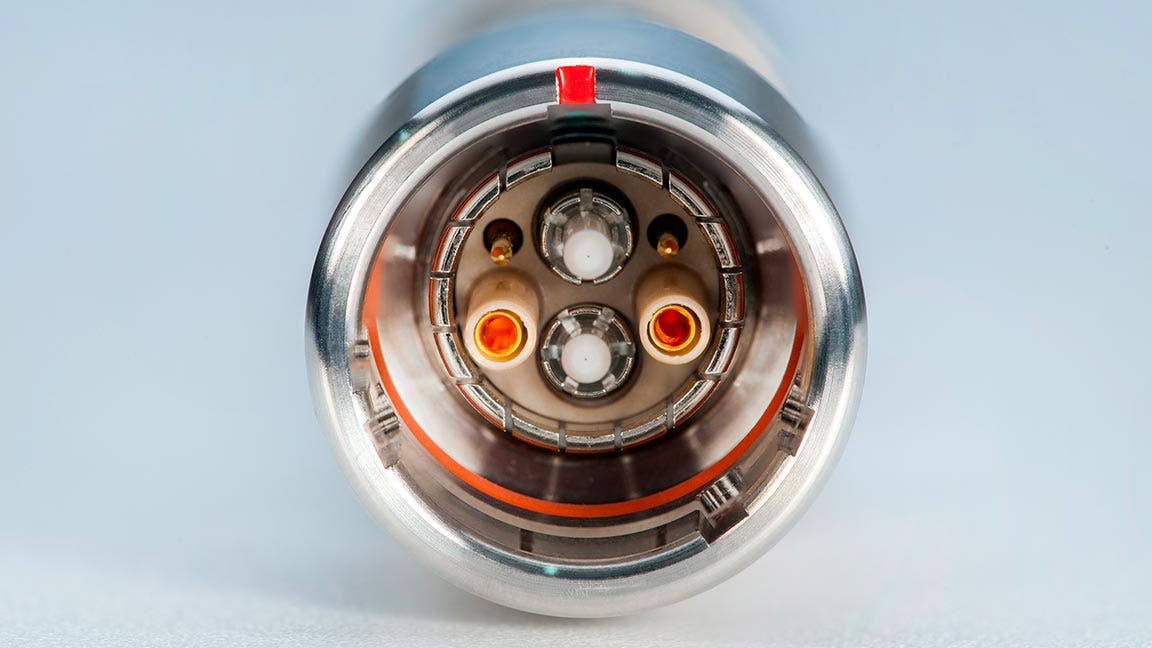

- Hybrid insert configuration including low voltage, high voltage and fibre optic
- EMC Shielding
- 360° screening for full EMC shielding
Solutions Selection Guide
Broadcast audio video
Broadcast HDTV - 3K.93C series - SMPTE
Broadcast HDTV - 3K.93C.Y series - SMPTE 304
Compact splice tray- 2U Rack
SPECIALTIES
Use the table to see the 2 main series within the SPECIALTIES connector family and to identify the connector(s) best adapted to your specific requirements.
| Description | Description The standard for high-definition TV (SMPTE 304). Robust hybrid fiber optic connector guarenteeing certified signal integrity. | Description 00 series: Coaxial 50 Ω self-latching connectors, the basis of the NIM-CAMAC standard. 01 series: Smallest self-latching coaxial 50 Ω connectors. |
| Locking | Locking Push-Pull | Locking Push-Pull |
| Size | Size 1 size ø 19.5 mm (plugs) | Size 2 sizes from ø 5.0 to ø 6.4 mm (plugs) |
| Keying | Keying 1 keyway | Keying No keying (Coax) |
| Shell Types | Shell Types Over 11 shell style | Shell Types Over 40 shell styles |
| Shell Material | Shell Material Stainless steel or Brass | Shell Material Brass |
| Plating | Plating Chrome on brass version | Plating Nickel, Chrome or Gold |
| Cable Diameter | Cable Diameter 8.9 to 9.5 mm | Cable Diameter 1.1 to 5.5 mm |
| NB of contact | NB of contact 2 FO / 2 signal / 2 power & ground | NB of contact Coax 50Ω |
| AWG | AWG 14 to 24 | AWG 26 |
| Contact types | Contact types Multipole • Fibre Optic High Voltage | Contact types Coax 50Ω |
| Contact Termination | Contact Termination Crimp | Contact Termination Solder / Crimp / Print (PCB) |
| Standard | Standard SMPTE 304 & equivalent | Standard |
| Sealing Level | Sealing Level IP68 | Sealing Level IP50 / hermetic sockets |
| Temperature Range | Temperature Range -40°C to 80°C | Temperature Range -55°C to 260°C |
| Mating Cycles | Mating Cycles > 20000 | Mating Cycles 00 > 5000 / 01 > 1000 |

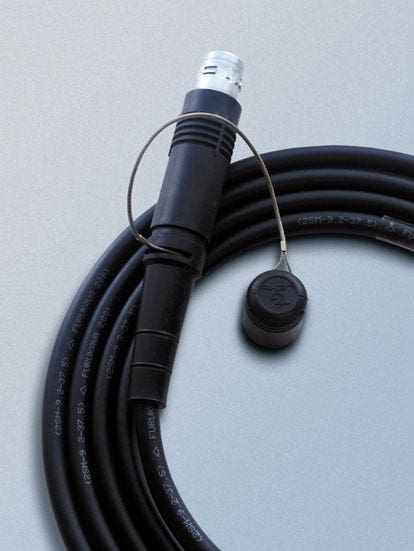

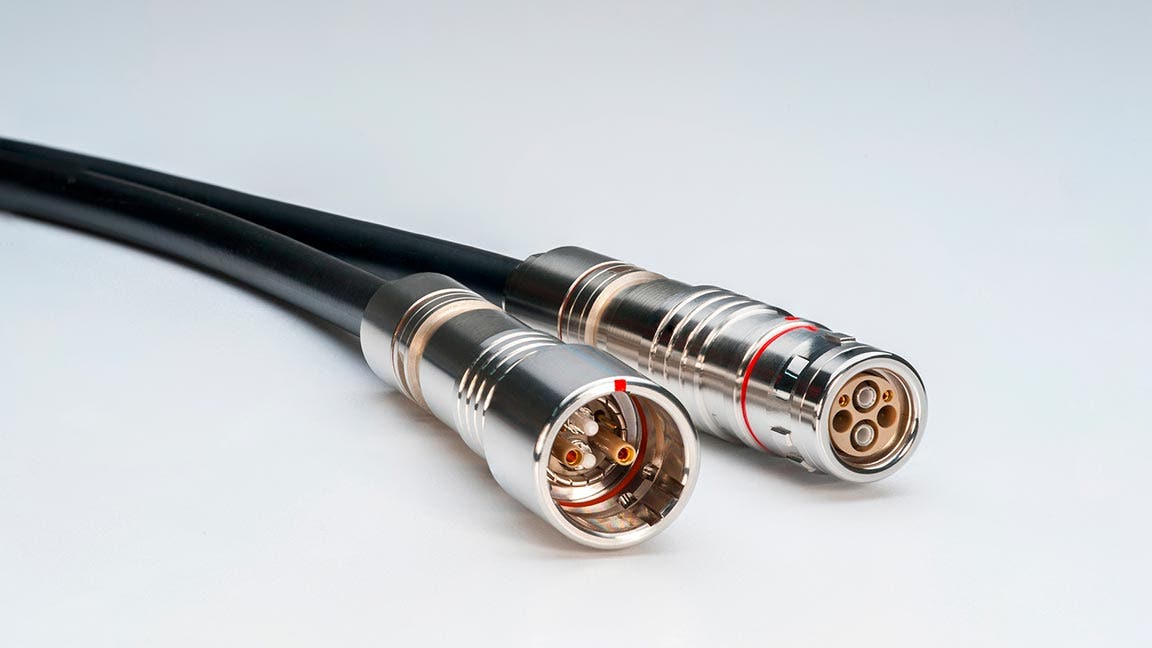

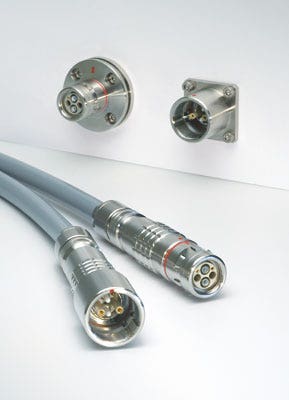

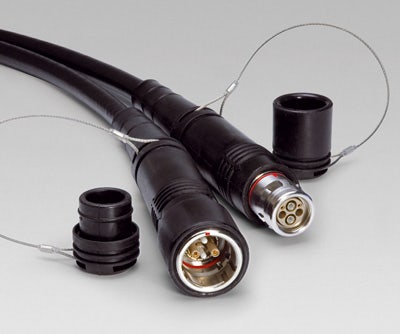

3K.93C.Y - SMPTE Hybrid
The 3K.93C & 3K.93C.Y series offer hybrid electrical-fibre optic connectors for HDTV applications (SMPTE / ARIB / EBU Standard) in outdoor environments (IP68). Featuring a Push-Pull latching system, these ergonomic, robust connectors conform to ARIB, SMPTE & EBU standards. Hybrid insert configurations including low voltage, high voltage and fibre optic, each of which are 360° screened for full EMC shielding are available.

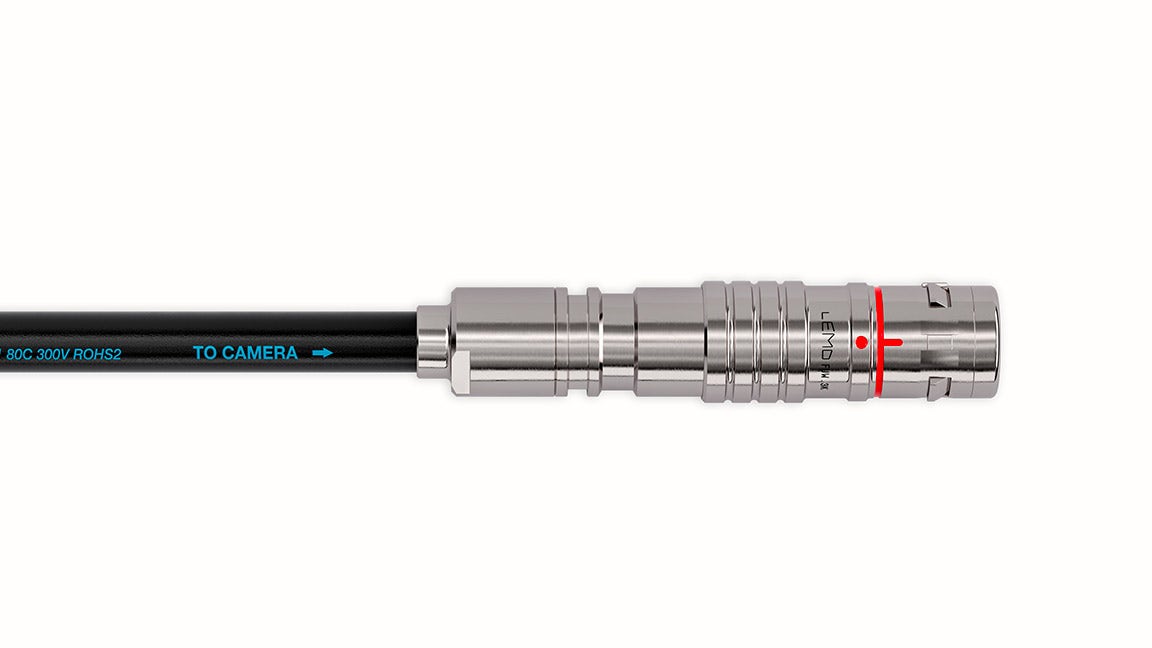

- Socket / Receptacle
- Free
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm

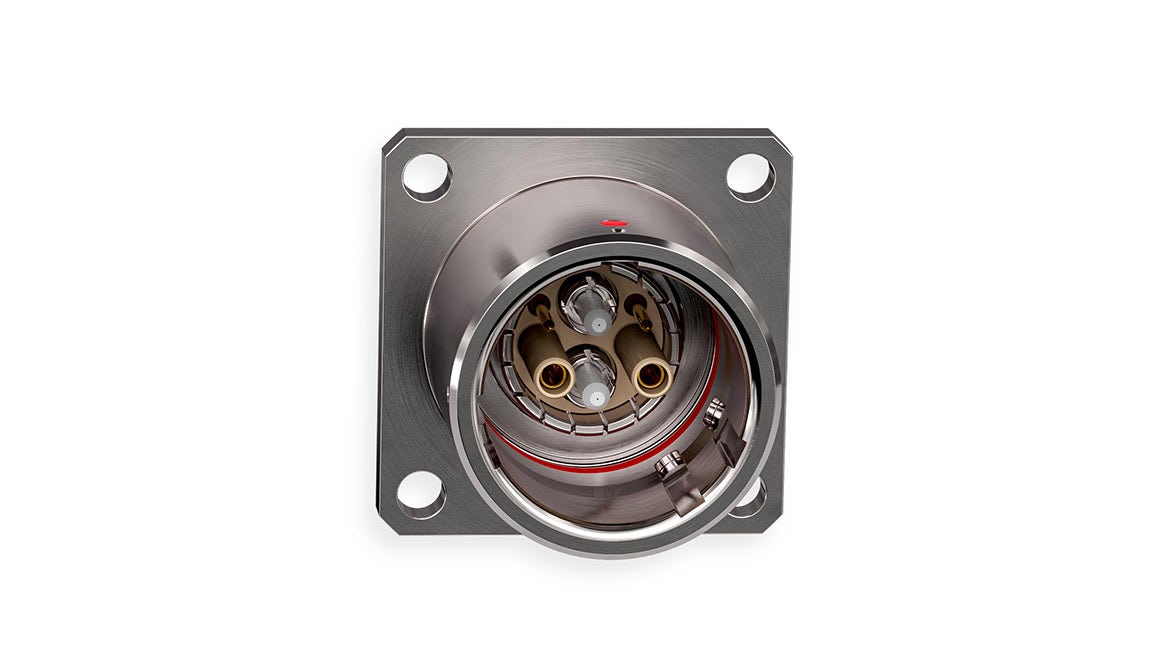

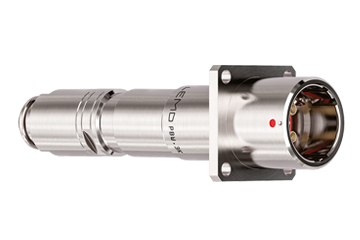

- Socket / Receptacle
- Fixed Panel Rear Mounted
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Plug
- Fixed
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Socket / Receptacle
- Free
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Socket / Receptacle
- Free
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
